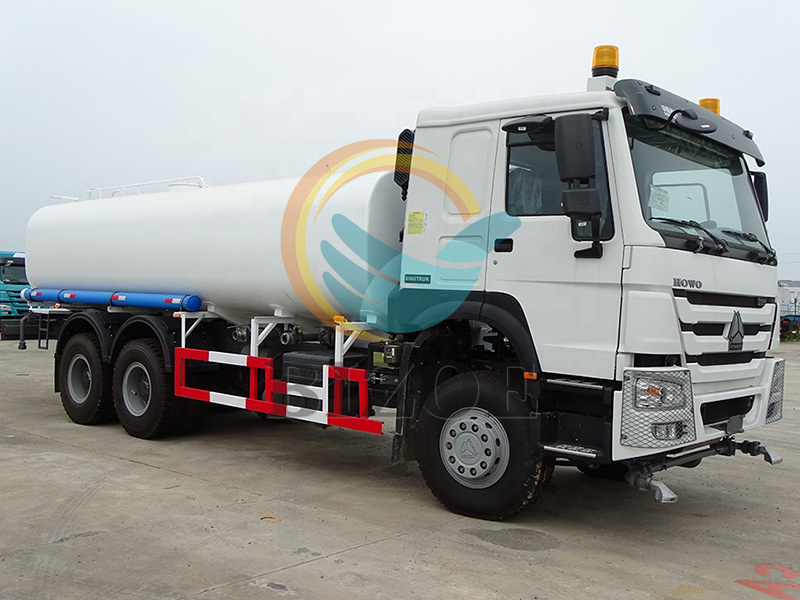

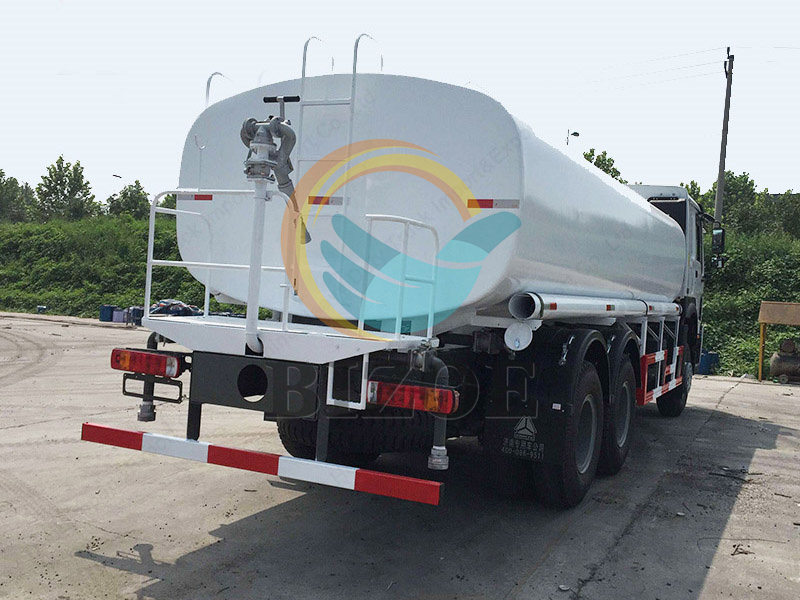

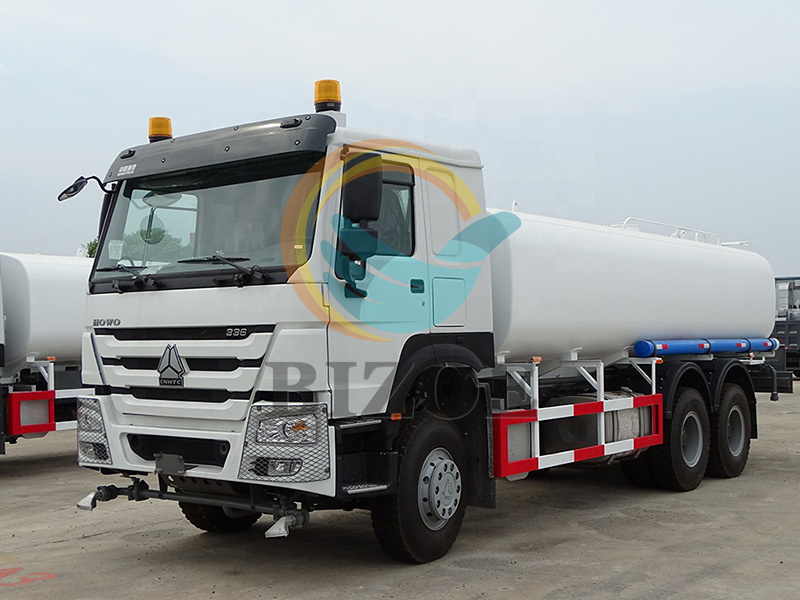

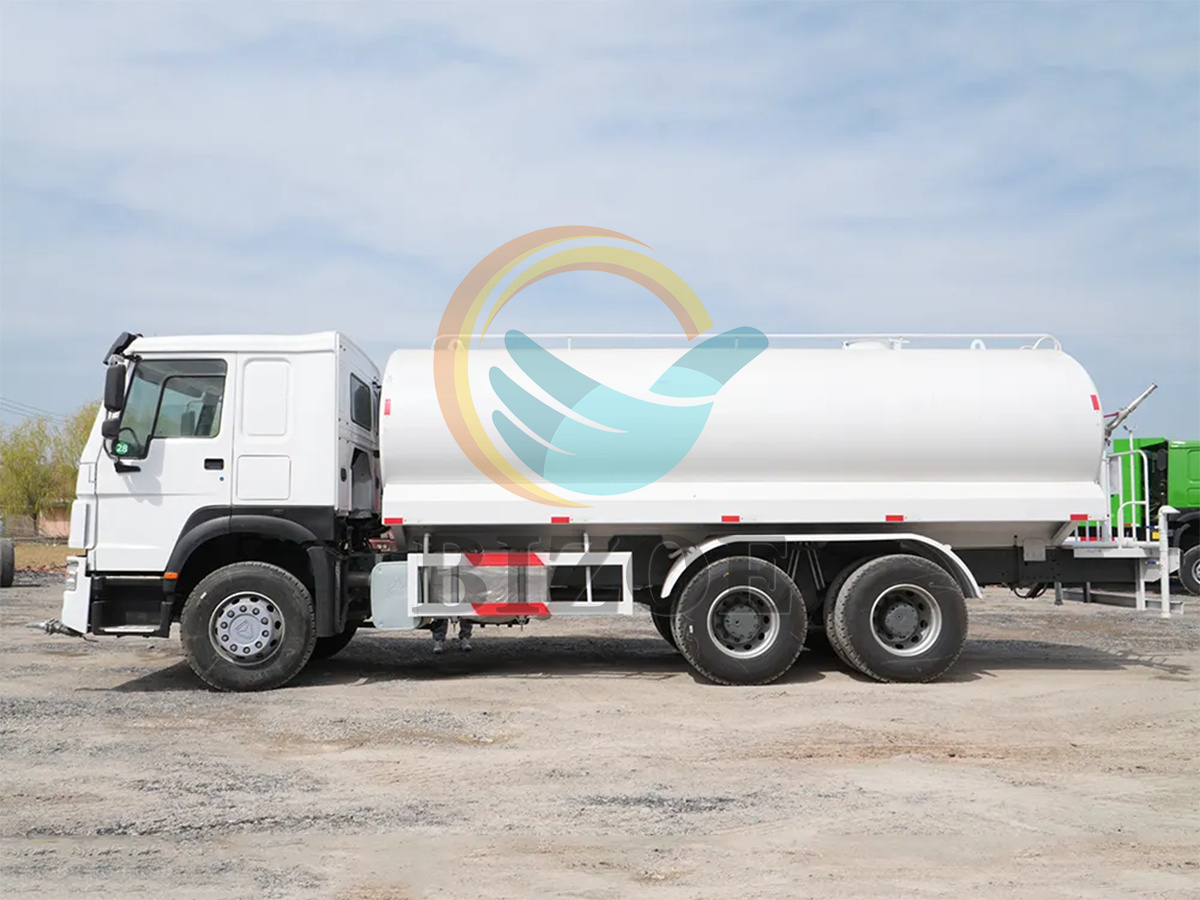

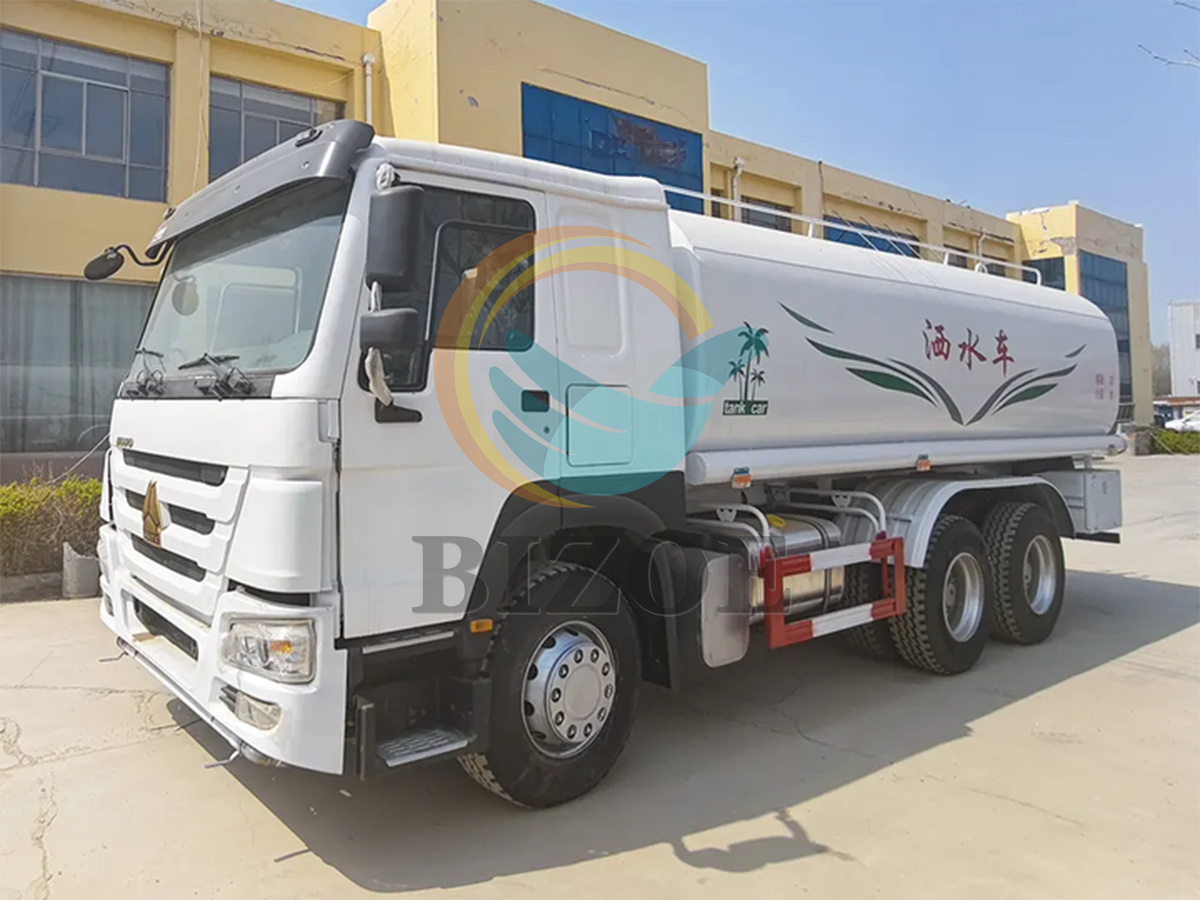

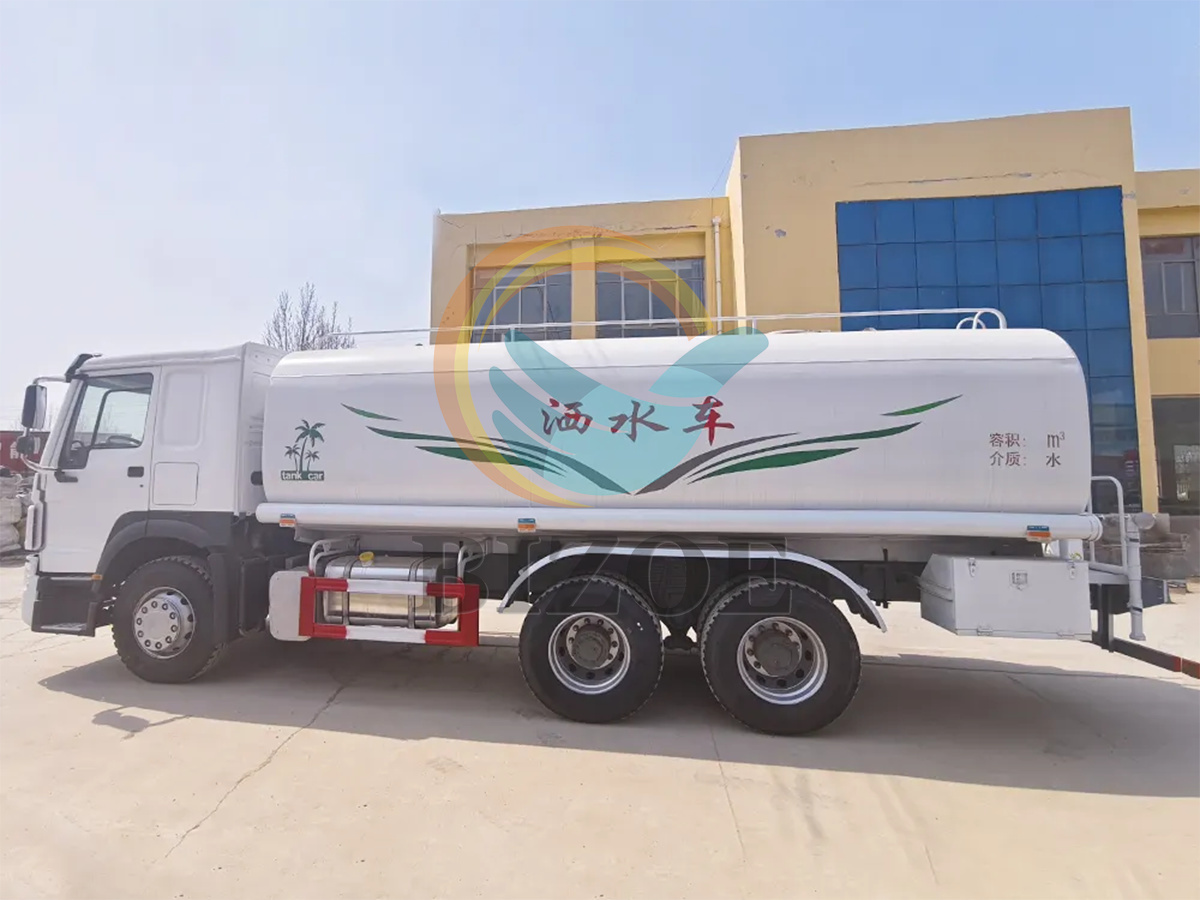

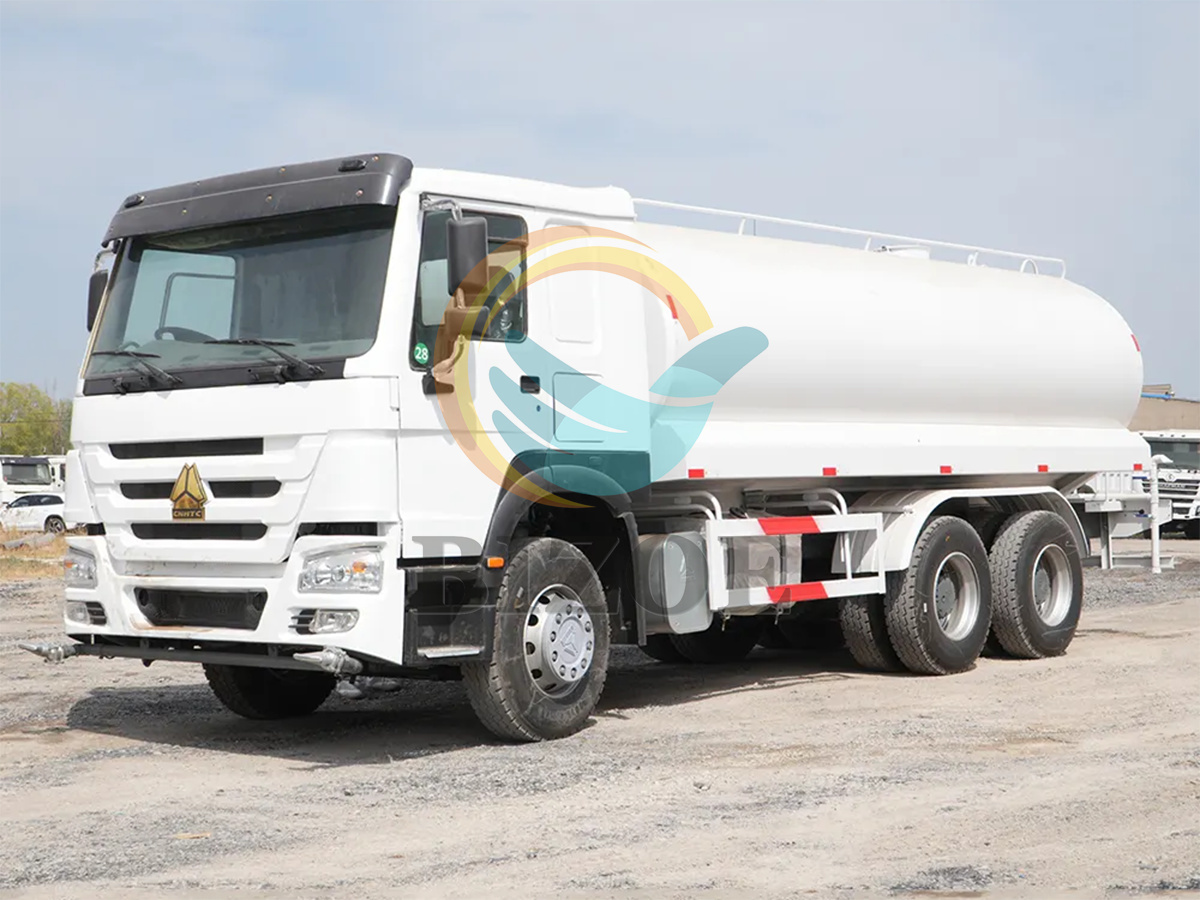

HOWO Used Water Tank Truck

Vehicle Parameters

General

Vehicle Model

YZR5250GSSZ5

Vehicle Brand

XDR

Chassis Brand

Sinotruk

Overall Dimension(mm)

9520×2500×3200

GVW/Curb Weight(kg)

25000/12170

Chassis Parameters

Cab

Cab Seat

2,3

Air Conditioner

Optional

Engine

Fuel Type

diesel

Engine Model

WD

Engine Brand

Sinotruk

Power(hp)

336

Displacement(cc)

9726

Emission Standard

Euro5

Chassis

Drive Type

6*4

Transmission

10 speed, Manual

Wheelbase(mm)

4325+1350

Tyre Specification

11.00R20

Tyre No.(pcs)

10+1

Max Speed(km/h)

90

Paint

Blue and White

Water Tank Structure Parameters

Tank Volume

20000L

Tank Material

Carbon Steel

Tank Thickness

5/5/3.5mm

Nozzle Sprinkling Width

≥14m

Range of water cannon

≥28m

Color and Logo

Optional

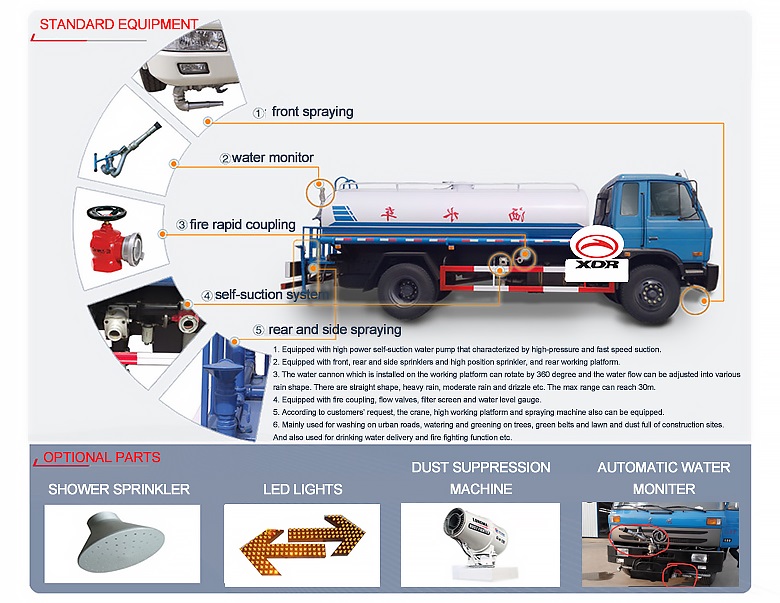

Standard configuration

Chassis, sub frame, carbon steel water tank,   manhole, water pump, front/side/rear spray nozzle,rear working platform,water
  cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.

Selective configuration

stainless steel/aluminum alloy water tank,insulation   layer for water tank,stainless steel water pump, fire pump, fire
  gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane,   hanging basket, rear spraying device, barrel
  pesticide spraying device, gasoline pesticide machine, diesel pesticide   machine, LED arrow lights

Extended model

water transporting truck, thermal insulation water   transporting truck, drinking water tank truck, liquid food truck, fire water
  tank truck, pesticide spraying truck,and etc.
