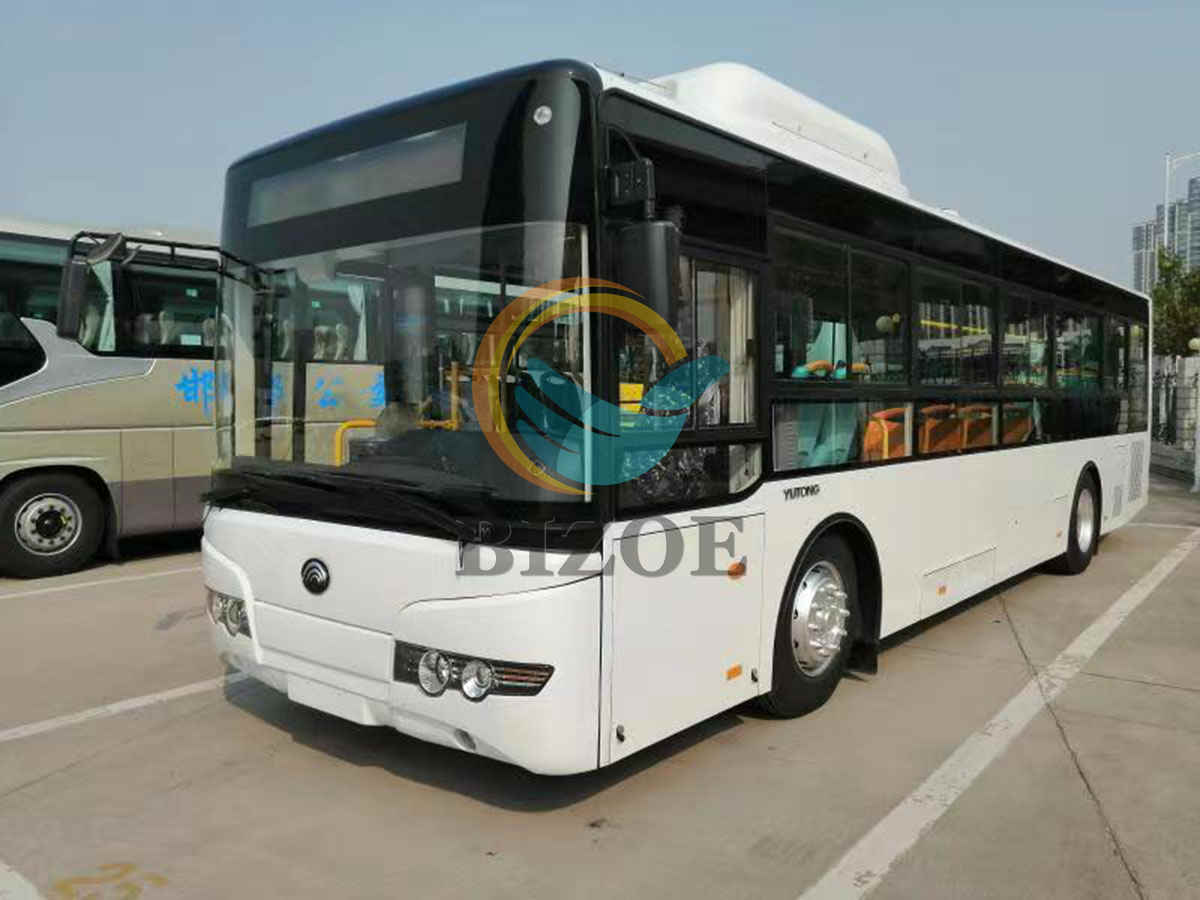

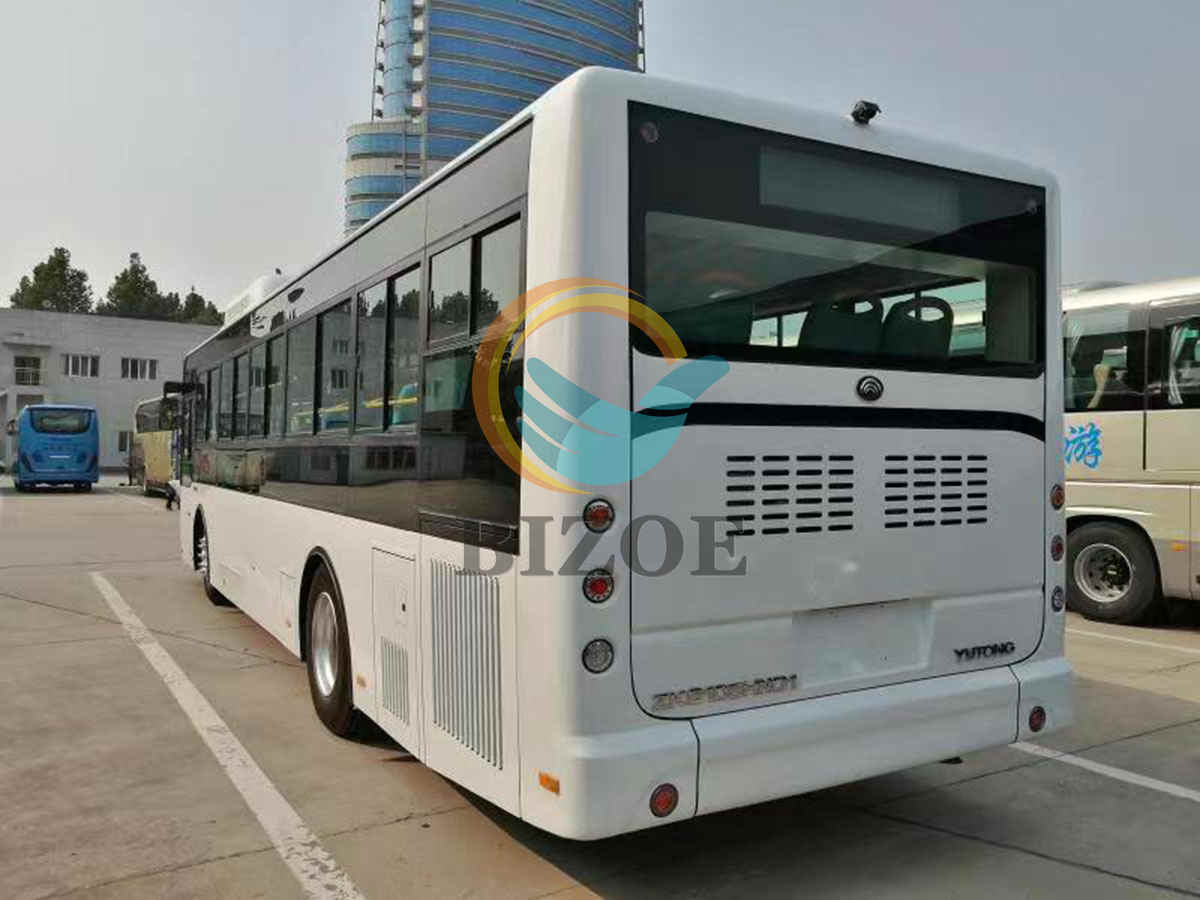

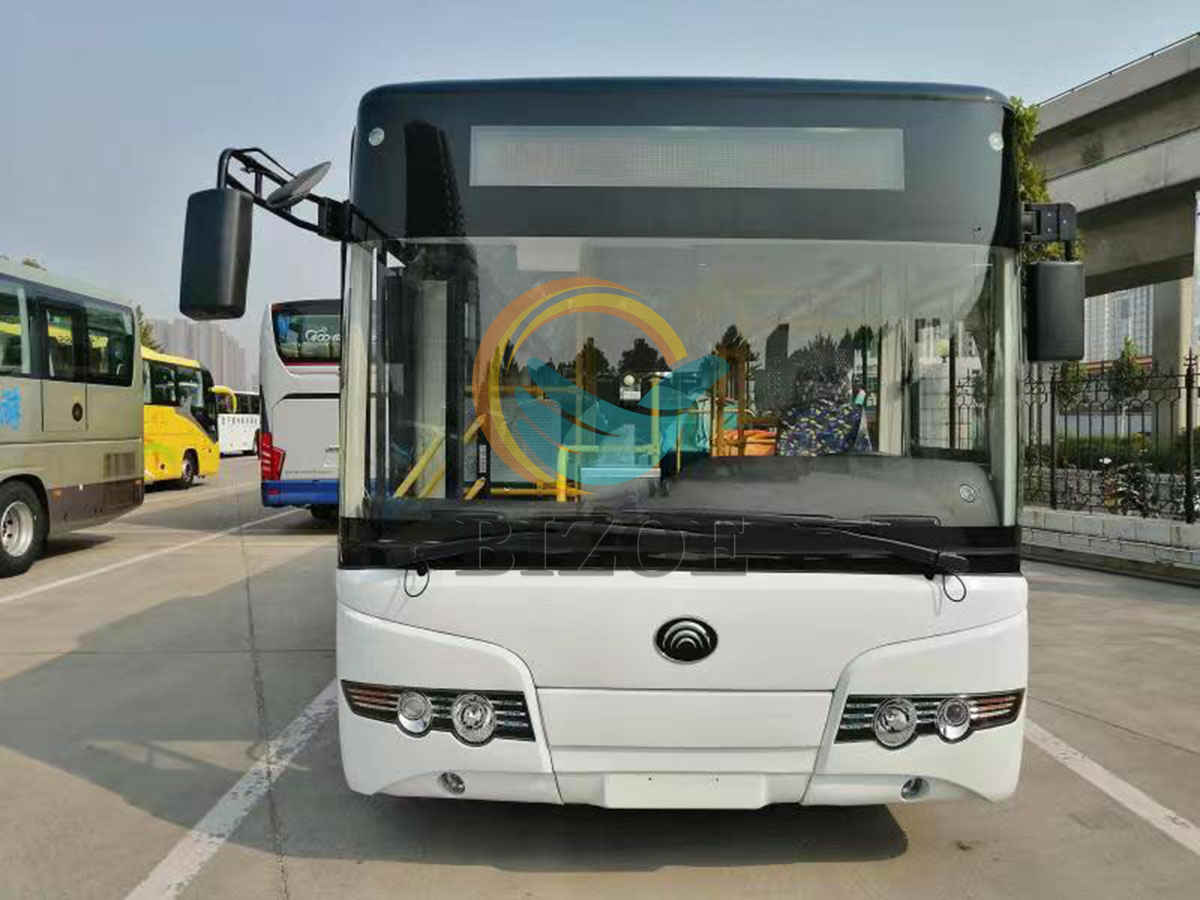

YUTONG Used City Bus

model

ZK6105HNGS1

usage

Bus

body length

10500mm

body width

2500mm

body height

4160mm

curb weight

12000,12600kg

total mass

18000kg

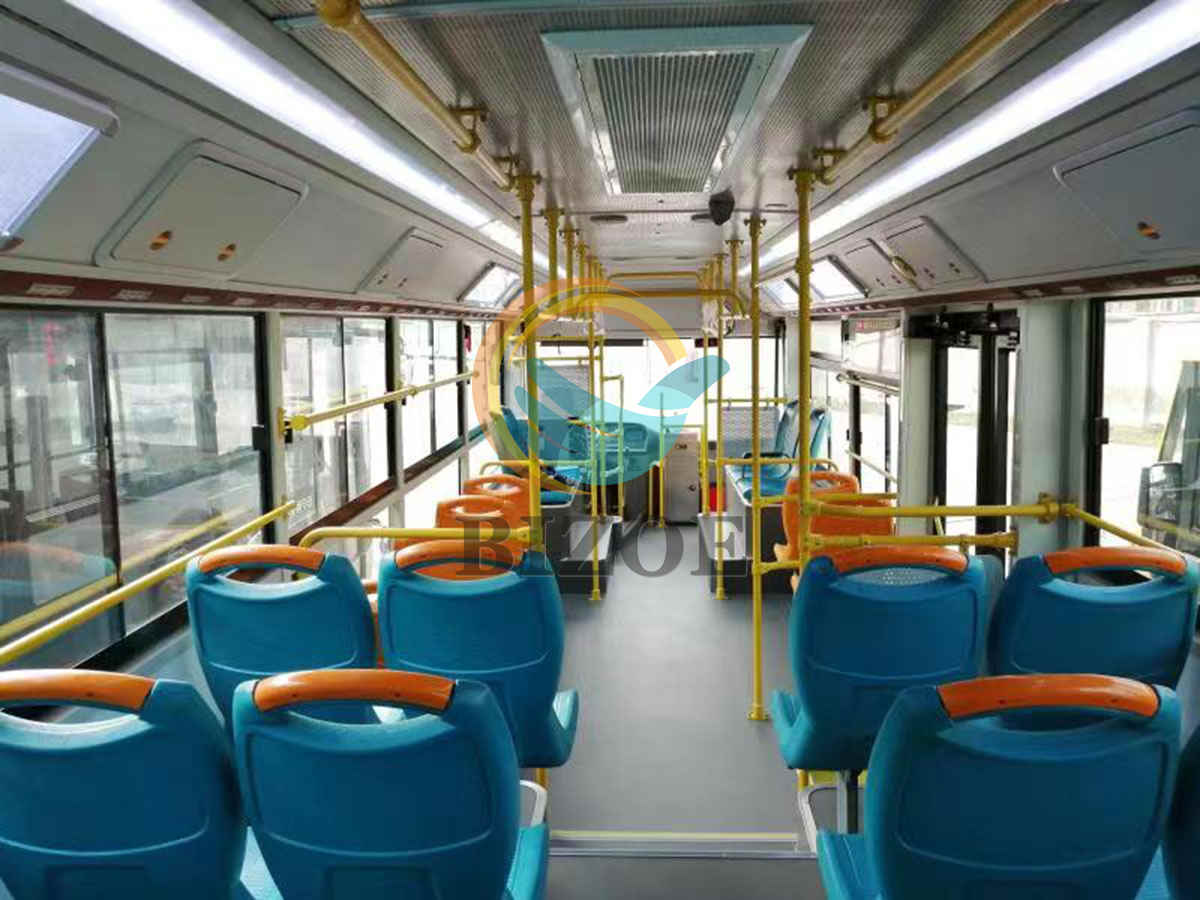

seats

92/24-66,82/24-66

top speed

69km/h

Chassis   parameters/configuration

Chassis model

load-bearing body

front suspension rear suspension

1940/3160mm

Number of spring pieces

3/4,-/-

number of axes

2

wheelbase

5400mm

Axle load

6500/11500kg

Front track

2103mm

rear track

1860mm

approaching the departure angle

8/7°

tire

Number of tires

6

Tire specifications

275/70R22.5,295/80R22.5

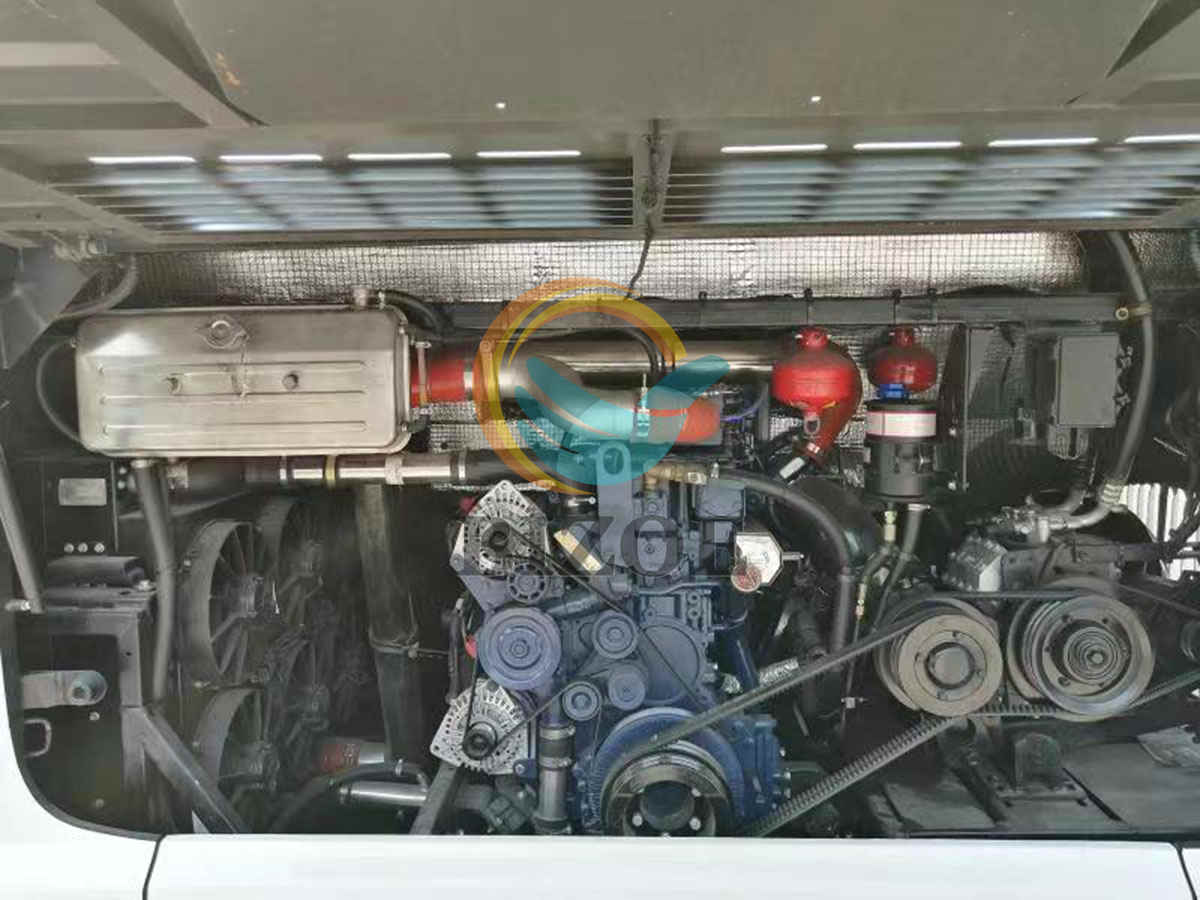

Engine   parameters

engine model

engine brand

engine power

Displacement

YC6L260N-52

191kw

8424ml

YC6L280N-52

206kw

8424ml

Remark

Remark

1. Optional air conditioner; 2. When the   kerb weight is 12600kg, the maximum number of occupants is 82, when the kerb   weight is 12000kg, the maximum number of occupants is 92, and the maximum net   engine power: 197KW (YC6L280N-52), 182KW (YC6L260N-52). ABS   model/manufacturer: ABS-E 4S/4M/WABCO Automotive Control System (China) Co.,   Ltd.
