Rice Milling Machine

HOME > PRODUCT > Rice Milling Machine

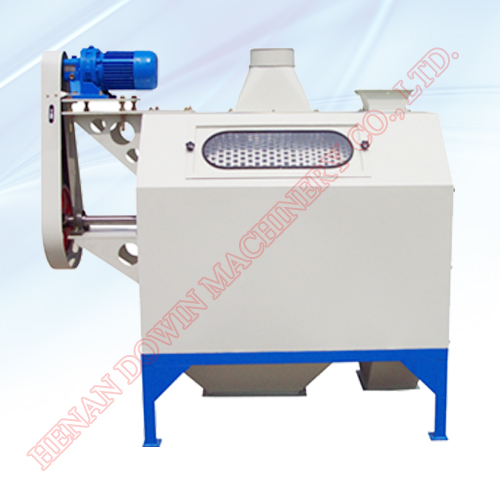

Ordinary drum precleaner

  • Model: TSCY
  • Power(kw): 1.1-2.2
  • Capacity(t/h): 5.0-25.0
  • Weight(kg): 720-900
  • Rotary speed of sieve cylinder(r/min): 17.24

ORDER HOTLINE:+86-15837186075

EMAIL US
PRODUCT DETAILS

Application and features of TSCY series ordinary drum precleaner

TSCY series ordinary drum precleaner is used in the front raw material processing section in the rice mill factory, flour mill factory, grain depot and other food processing factory, to clean the big and light impurities in the raw material. It has the advantages of large output, good effect and so on.

Large output, low consumption, small covering area, easy to change the sieve.

Main technical parameters of TSCY series ordinary drum precleaner

ModelTSCY63TSCY80TSCY100TSCY125
Power(kw)1.11.51.52.2
Capacity(t/h)5.0-8.08.0-11.010.0-20.020.0-25.0
Weight(kg)720720900900
Rotary speed of sieve cylinder(r/min)17.2417.2417.2417.24
Dimension(L*W*H)(mm)1280*800*12351455*960*13801600*1160*15801950*1400*2060
